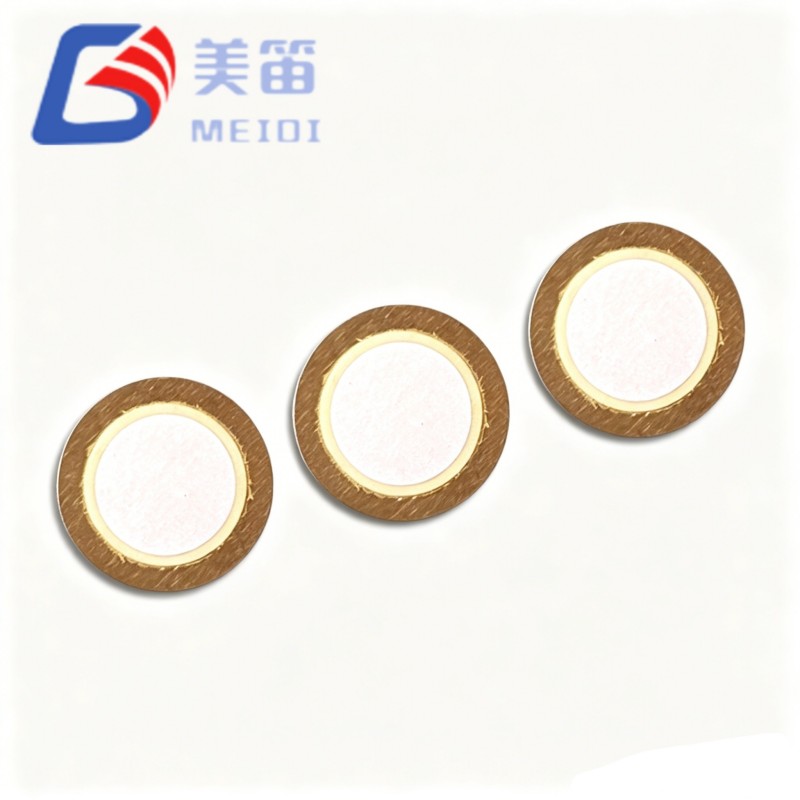

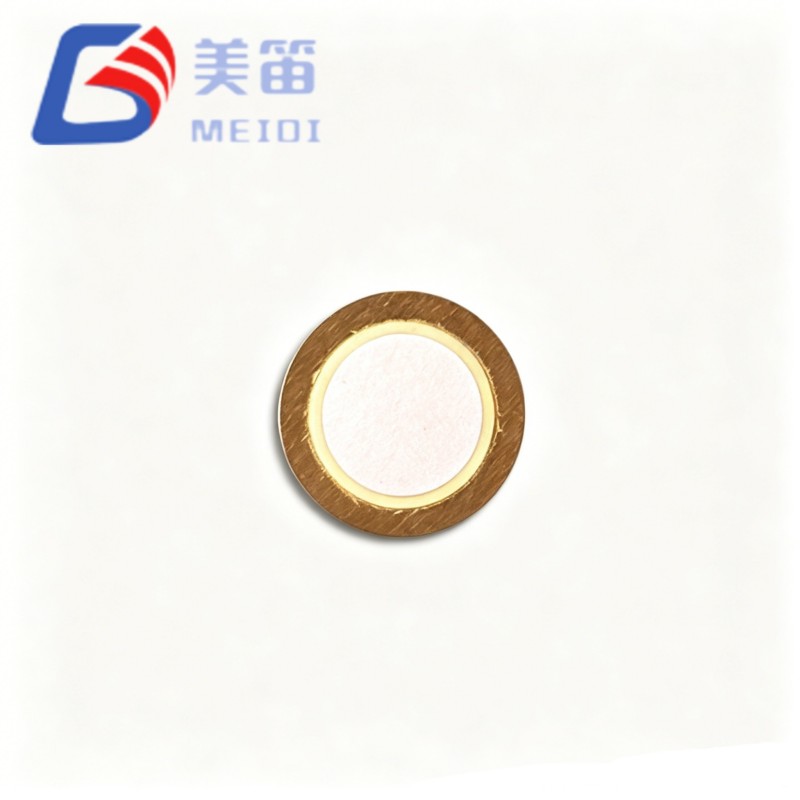

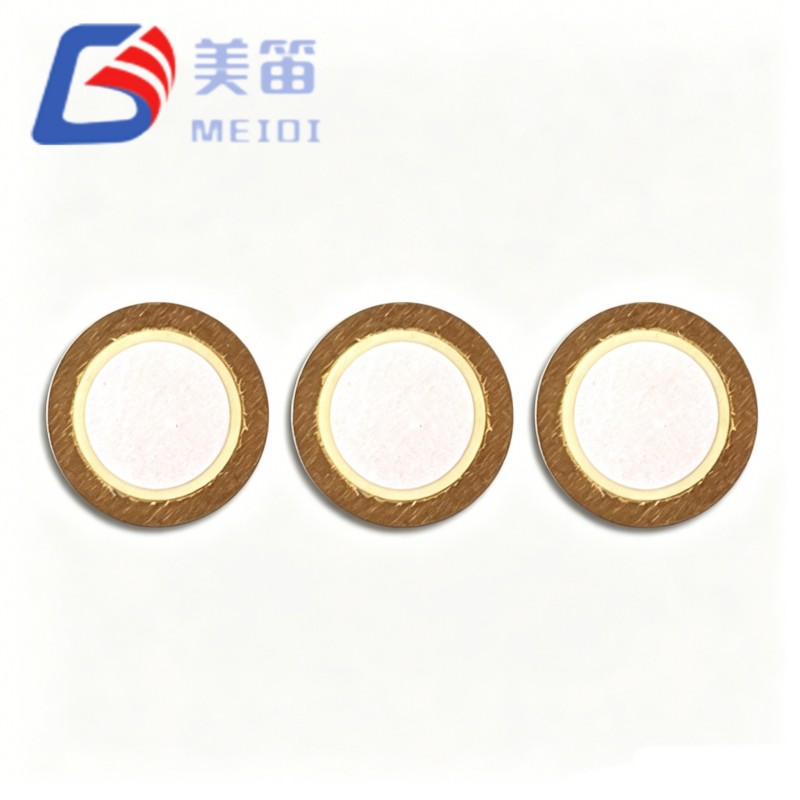

The 12mm Piezo Ceramic Buzzer Element is a compact 12mm diameter piezoelectric ceramic disc bonded to a brass substrate, designed for high‑frequency tone generation in space‑constrained designs. With a resonant frequency of 8.0 kHz and an ultra‑thin profile of only 0.18 mm, this element is well‑suited for miniaturized alert modules in wearables, portable medical instruments, and slim security sensors. MEIDI produces this element under tightly controlled polarization and electrode printing processes, ensuring consistent frequency response and capacitance uniformity across production batches. Our in‑house automated manufacturing and rigorous testing support reliable performance for both prototyping and high‑volume OEM supply.
Resonant frequency: 8.0 ± 1.0 kHz per specification
Free capacitance: 17,000 pF ± 30% at 120 Hz per specification
Dimensions: 12.0 mm diameter, 0.18 mm thickness per specification
Brass substrate for reliable acoustic vibration coupling
Operating temperature: -20 °C to +70 °C per specification
| Parameter | Value | Unit |
| Product Type | Piezoelectric Ceramic Element | — |
| Resonant Frequency | 8.0 ± 1.0 | kHz |
| Free Capacitance | 17,000 ± 30% | pF (at 120 Hz) |
| Equivalent Resistance | ≤ 300 | Ω |
| Dielectric Loss (tanδ) | ≤ 5% | — |
| Operating Temperature | -20 ~ +70 | °C |
| Storage Temperature | -30 ~ +80 | °C |
| Substrate Material | Brass | — |

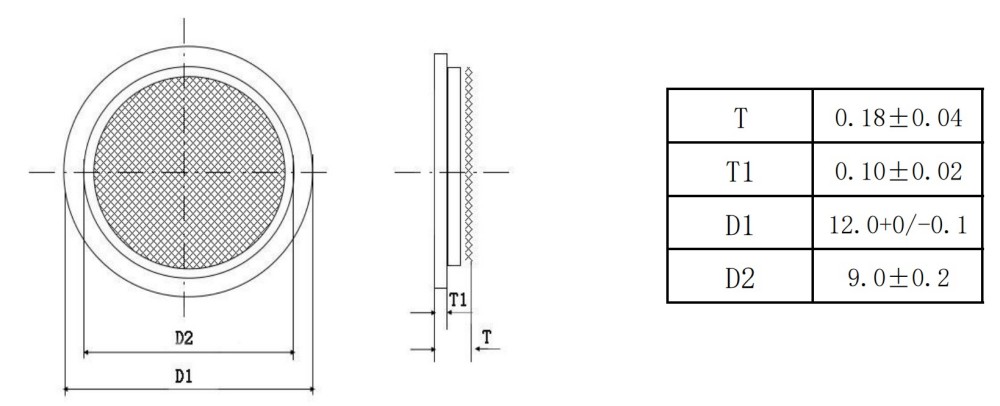

| Total Thickness (T) | 0.18 ± 0.04 | mm |
| Ceramic Thickness (T1) | 0.10 ± 0.02 | mm |
| Outer Diameter (D1) | 12.0 +0 / -0.1 | mm |
| Inner Diameter (D2) | 9.0 ± 0.2 | mm |
Wearable health monitors and fitness trackers
Portable medical diagnostic devices (glucose meters, pulse oximeters)
Slim security tags and window/door contact sensors
Miniature IoT alarm modules and smart home hubs
Handheld industrial testers and measurement instruments
Compact consumer electronics requiring high‑frequency audible feedback
MEIDI has been dedicated to acoustic component manufacturing since 2011. Our production base in Jiangsu Province houses over 500 employees and multiple automated assembly lines, with a monthly output capacity exceeding 50 million buzzer elements. The 12mm Piezo Ceramic Buzzer Element benefits from this scale: ceramic powder preparation, tape casting, electrode screen printing, polarization, and substrate bonding are all completed in‑house, allowing us to maintain tight control over material purity and process stability.
All elements pass 100% resonant frequency and capacitance testing before shipment. Our quality system, certified to ISO 9001, also includes incoming material inspection, in‑process checks, and final acoustic verification. This end‑to‑end control ensures that every batch meets the same specifications, whether you order 1,000 pieces or 1,000,000.
1. Do not apply drive voltage exceeding the rated operating range of the FT-12T-8.0A1. Over‑voltage can lead to permanent depolarization or delamination of the ceramic layer.
2. Handle by the brass edge only. Direct pressure on the ceramic surface may cause micro‑cracks that shift the resonant frequency and reduce acoustic output.
3. Avoid exposure to corrosive gases, salt mist, or high humidity during storage and assembly. Oxidation of the brass substrate can degrade mechanical Q and solderability.
4. Keep elements in their original sealed packaging until use. Moisture absorption increases dielectric loss and may accelerate electrode deterioration.
5. Mount the element with support only around the substrate perimeter. Restricting the central vibrating area will alter the acoustic response and may cause premature failure.
A: Standard MOQ is 1,000 pieces. Smaller trial quantities can be arranged with a slight price adjustment. Please contact our sales team for a tailored quotation.
A: Yes, free samples are available for qualified OEMs and product developers. Express shipping costs may apply depending on the destination.
A: Customization is supported within feasible ranges. Our R&D team can adjust ceramic composition, electrode pattern, and substrate thickness to meet your specific requirements. Please share your target parameters for a feasibility assessment.
A: MEIDI is ISO 9001 certified. For the FT-12T-8.0A1, we can supply RoHS and REACH compliance statements, along with batch‑specific test reports upon request.
A: Elements are packed in anti‑static trays and vacuum‑sealed bags with desiccant, then placed in reinforced export cartons. Custom labeling and barcoding are available for high‑volume orders.
To request the full datasheet, dimensional drawings, or integration guidance for the FT-12T-8.0A1 12mm piezoelectric ceramic element, please contact MEIDI with your application details. Our engineering support team will respond with specific technical recommendations within one business day.
