Designed for native operation on 12 V DC buses, the HNB09A12 delivers a minimum 85 dB alert tone at 2700 Hz without requiring voltage regulation or external drive components. Its 8–16 V operating range spans automotive cold‑crank sag (down to 8 V) and alternator overvoltage transients (up to 16 V), making it a reliable choice for vehicle accessory systems, agricultural machinery, marine panels, and industrial control modules.

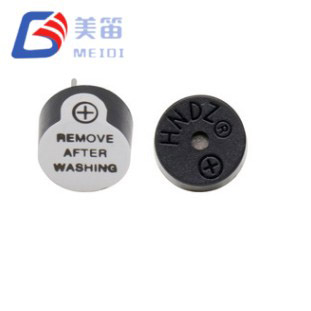

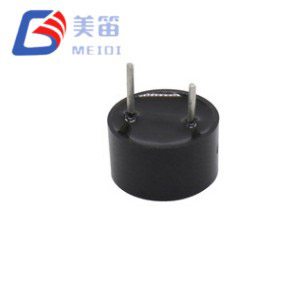

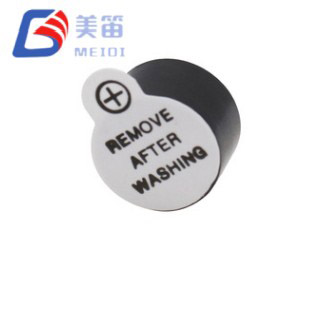

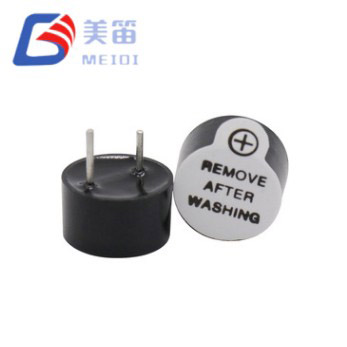

Manufactured in MEIDI’s Jiangsu facility, this 9 mm diameter active buzzer weighs only 0.75 g, reducing inertial loading on PCBs in high‑vibration environments. The integrated oscillator and through‑hole construction eliminate external PWM generation and provide robust mechanical anchoring. Each production unit undergoes 100% acoustic and electrical verification, with sample data showing SPL consistently above 87 dB and current draw below 27 mA at 12 V.
| Parameter | Value |
| Rated Voltage | 12 VDC |
| Operating Voltage Range | 8 – 16 VDC |
| Sound Pressure Level | ≥ 85 dB |
| Resonant Frequency | 2700 ± 300 Hz |
| Operating Current | ≤ 30 mA |
| Operating Temperature | -20 ℃ ~ +70 ℃ |
| Storage Temperature | -30 ℃ ~ +80 ℃ |

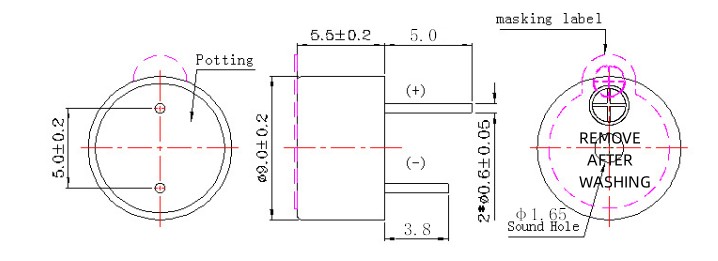

| Dimensions | 9.0 × 5.5 mm (Dia × H) |
| Weight | 0.75 g |
| Housing Material | Black PBT |
| Mounting Type | Through‑hole |
The 9mm 5V Electromagnetic Active Buzzer is a self‑driven electromagnetic active buzzer engineered for 12 V and 24 V industrial architectures. Unlike lower‑voltage variants that require buck converters or resistor dividers from standard industrial rails, this 12 V through‑hole electromagnetic active buzzer connects directly to automotive batteries, PLC I/O modules, and marine power distribution without intermediate regulation.
The 8 V minimum operating threshold ensures reliable activation during engine cranking, when battery voltage can temporarily drop below 10 V. The 16 V upper limit accommodates alternator overvoltage events and provides headroom for 24 V systems with a simple series resistor. This voltage resilience eliminates the need for active clamping or TVS diodes in many installations, simplifying BOM and reducing failure points.
At 9.0 mm diameter and 5.5 mm height, the HNB09A12 occupies a compact footprint that fits legacy 9 mm and 12 mm panel cutouts. Its 0.75 g mass — approximately 56% lighter than 12 mm × 7.5 mm alternatives — reduces solder joint stress during vibration and shock, an important advantage in vehicle and machinery applications where PCB flexure is common.
The integrated oscillator produces a fixed 2700 Hz tone upon DC application, freeing microcontroller PWM timers and eliminating external timing capacitors. The black PBT housing withstands wave soldering at 255 °C and manual rework at 360 °C without deformation, supporting both automated assembly and field repair.
Native 12 V bus compatibility – operates directly from automotive, industrial, and marine 12 V DC systems without voltage conversion circuitry
Wide 8–16 V survival range – tolerates cold‑crank voltage sag, alternator overvoltage, and unregulated 24 V systems with passive dropping
Built‑in oscillator with fixed 2700 Hz output – no MCU PWM pin allocation or external timing components required
Ultra‑light 0.75 g mass – minimizes inertial loading on PCB in vibration‑prone vehicle and machinery applications
Through‑hole mechanical anchor – lead retention through board withstands sustained shock and thermal cycling
Repair‑tolerant PBT housing – rated for 255 °C wave soldering and 360 °C manual rework without dimensional distortion

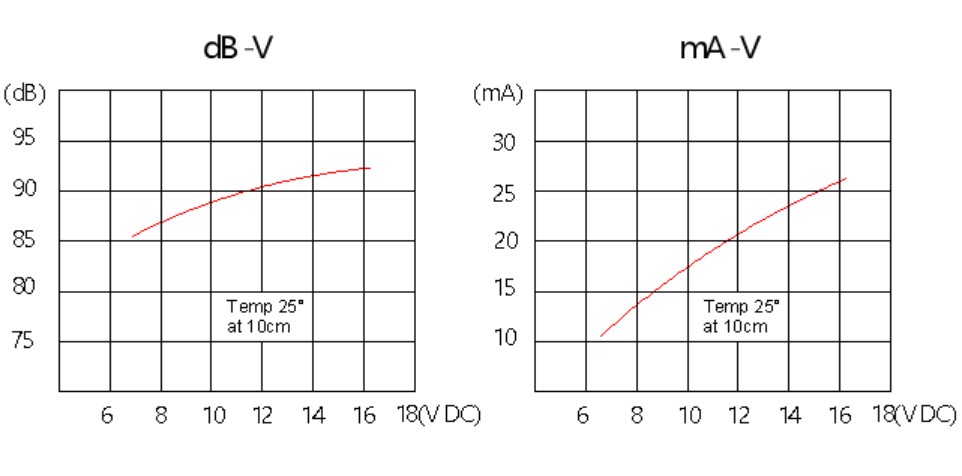

| Parameter | Value | Test Conditions |
| Rated Voltage | 12 VDC | At 25 ℃ |
| Operating Voltage | 8 – 16 VDC | Continuous |

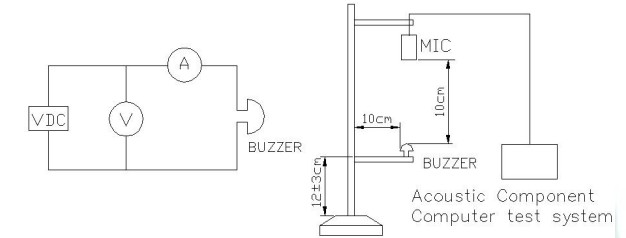

| Sound Output | ≥ 85 dB | At 12 VDC, 10 cm, free field |
| Resonant Frequency | 2700 ± 300 Hz | At rated voltage |
| Operating Current | ≤ 30 mA | At 12 VDC |
| Coil Resistance | ~400 Ω (typical) | At 25 ℃, DC |
| Rise Time | < 50 ms | To 90% SPL |
| Requirement | HNB09A12 Advantage |
| Eliminate voltage regulator from 12V/24V bus | Native 12V operation; 8–16 V range spans battery discharge and alternator overvoltage |
| Reduce BOM cost in high‑volume automotive | No buck IC, inductor, or capacitor required; direct wire‑to‑bus connection |
| Survive cold‑crank voltage sag | 8 V minimum ensures activation during engine start when battery drops below 10V |
| Fit legacy 9 mm/12 mm buzzer cutouts | 9.0 mm diameter maintains mechanical compatibility with existing panel designs |
| Minimize PCB mass in vibration environments | 0.75 g — approximately 56% lighter than 12 mm × 7.5 mm alternatives |
This model occupies a distinct voltage tier within MEIDI’s active buzzer family. Where 3 V and 5 V variants serve logic‑level and battery‑powered applications, the HNB09A12 bridges directly to 12 V heavy‑equipment and automotive power architectures. System designers benefit from reduced component count, lower assembly cost, and improved reliability from eliminating active regulation stages.
For 24 V bus installations, a single series resistor (470 Ω to 680 Ω, depending on tolerance) provides simple current limiting, preserving the buzzer’s ≤30 mA specification without adding complex circuitry.
Automotive 12V accessory systems – seatbelt warnings, door‑ajar alerts, reverse proximity tones, and key‑in‑ignition chimes in passenger vehicles and commercial fleets
Agricultural and construction machinery – operator presence alarms, hydraulic fault indicators, and implement position alerts in tractors, excavators, and harvesters
Marine and RV electrical panels – bilge pump alarms, shore power disconnect warnings, and battery level alerts in 12V DC boat and caravan systems
12V industrial control modules – low‑voltage sensor interface alerts, 12V DC actuator status tones, and compact automation sub‑systems operating from 12V battery or regulated supplies
Small‑form‑factor 12V UPS systems – compact battery backup units, portable power stations, and 12V DC uninterruptible power supplies where space and weight are constrained
Solar charge controllers and inverters – array fault tones, battery disconnect alerts, and load shedding notifications in off‑grid installations

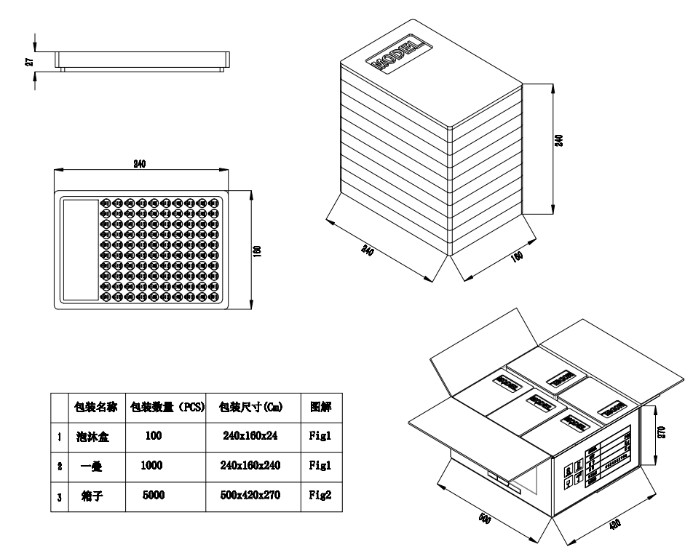

MEIDI produces the 9mm 5V Electromagnetic Active Buzzer on dedicated through‑hole assembly lines with in‑process inspection at each stage – coil winding, magnet assembly, oscillator tuning, and encapsulation. Our Jiangsu manufacturing base follows ISO 9001 protocols, with automated test equipment verifying electrical parameters and acoustic output on every unit.
Batch‑level qualification includes:
High‑temperature storage – 48 hours at +80 ± 2 ℃; full parameter recovery after 2‑hour ambient stabilization
Low‑temperature storage – 48 hours at -30 ± 2 ℃; verified cold‑start activation at 8 V minimum
Thermal shock cycling – 5 cycles between -30 ℃ and +80 ℃ with 30‑minute dwell per extreme
Mechanical stress validation – sinusoidal vibration (10–55 Hz, 1.0 mm amplitude, XYZ axes, 0.5 hours cumulative) and 75 cm free‑fall drop onto 10 mm hardwood (3 impacts)
Humidity resistance – 48 hours at 50 ± 5 ℃ / 90–95% RH followed by 2‑hour recovery and electrical characterisation
Solder heat resistance – 250 ± 5 ℃ for 10 ± 0.5 seconds with 2.0 mm body‑to‑solder clearance
Sample batch data (n=10) confirms consistent performance: sound pressure 87.3–89.7 dB, current 24.9–26.5 mA, frequency 2677–2723 Hz – all parameters tightly clustered within specification windows. Certifications include RoHS, REACH, and UL94 V‑0 for the housing material.
Q1: Can the HNB09A12 operate from a 24V industrial bus without additional components?
Yes, with a series dropping resistor. At 24V nominal, a 470 Ω 1W resistor limits current to approximately 25 mA — within the ≤30 mA specification. For unregulated 24V systems (20–28V range), a 680 Ω resistor provides margin. Alternatively, a simple zener diode clamp or low‑drop regulator can be used for continuous‑tone applications where resistor power dissipation is undesirable. The 16 V absolute maximum must not be exceeded without current limiting.
Q2: How does the 2700 Hz frequency perform in engine‑bay or machinery‑cab environments?
The 2.7 kHz resonant frequency sits below the dominant noise spectrum of diesel engines (typically 3–8 kHz fundamental and harmonics) and hydraulic pumps (broadband above 4 kHz). This spectral positioning improves signal‑to‑noise ratio in agricultural, construction, and marine engine compartments where higher‑frequency buzzers may be masked. The 2700 Hz tone also propagates with less atmospheric attenuation than 4 kHz alternatives over the short distances typical of vehicle cabins.
Q3: What is the recommended operating practice for high‑temperature environments?
The HNB09A12 is rated for continuous operation from -20 °C to +70 °C. At temperatures approaching the +70 °C upper limit, coil resistive losses generate additional heat that compounds ambient thermal stress. For sustained high‑temperature deployment, MEIDI recommends operating at the lower end of the 8–16 V range to minimise coil dissipation, or implementing a duty‑cycled alert pattern rather than continuous tone to reduce accumulated thermal load. For specific high‑temperature reliability data, contact factory applications engineering.
Q4: Is the HNB09A12 pin‑compatible with legacy 9 mm and 12 mm through‑hole buzzers from other manufacturers?
The 9.0 mm body diameter fits standard 9 mm front‑panel cutouts and most 12 mm cutouts with minimal gap. Pin spacing and diameter conform to industry‑standard through‑hole buzzer conventions, enabling drop‑in replacement in many legacy designs. For cross‑reference verification, MEIDI provides pinout drawings and dimensional comparison sheets upon request. Custom lead forming (straight, kinked, or offset) is available for non‑standard PCB layouts.
Q5: How does the compact 9 mm form factor affect vibration and shock survivability?
The 0.75 g mass and reduced 9 mm diameter contribute to lower inertial loading on solder joints under mechanical shock and vibration compared to larger 12 mm alternatives. The smaller diaphragm area and lower moving mass also reduce microphonic effects – unwanted mechanical vibration coupling into acoustic output – helping maintain tonal clarity in vibration‑prone environments. For applications where vibration exceeds standard industrial levels, MEIDI recommends evaluating the mounting orientation and considering mechanical isolation grommets to decouple PCB flexure from the buzzer housing.
For technical datasheets, 12V/24V driver circuit application notes, cross‑reference verification, or volume pricing for automotive and industrial programs, contact MEIDI Engineering Support.
MEIDI applications engineering typically responds to technical inquiries within one business day with driver circuit schematics, voltage‑drop resistor calculations, and automotive compliance documentation.
